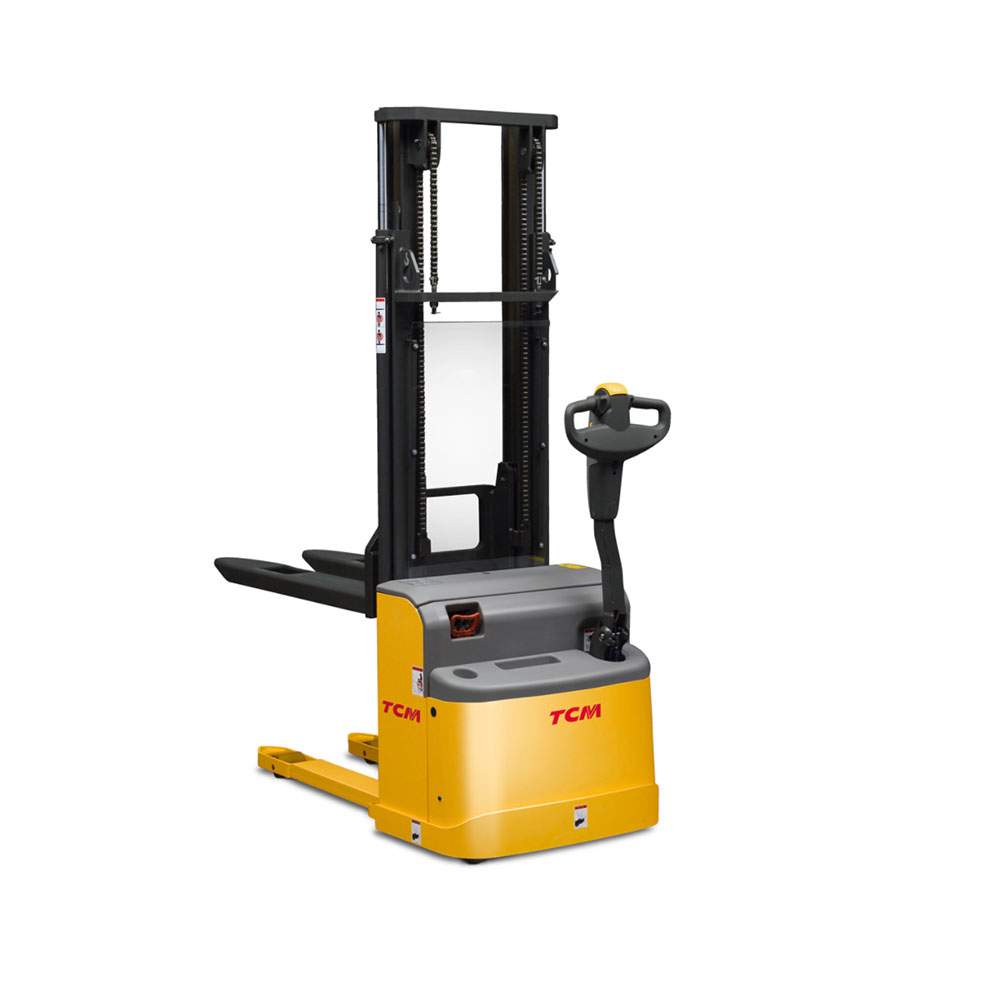

SP Pallet Stackers
For wide varieties of applications
An ideal choice for applications requiring medium height pallet stacking (to 4.2 metres), occasional order picking and short, medium and long-distance travel.
Just 800 mm wide and 1898 mm long with forklength of 1200 mm, the TCM SP pedestrian pallet stacker is stable to lift heavy loads but highly manoeuvrable to work in confined spaces. Its modern design includes specially rounded edges to prevent damage to personnel and products and allows for easy cleaning. Robust construction includes metal sides to help absorb knocks, while a modular format enables components to be shared across the range for economy and rapid availability.
The four-wheel design of the SP makes for excellent stability and high residual capacities. Intelligent electronics add to truck control and diagnostics, while the low chassis allows the operator the best view of the forks at all times
The tiller arm is offset, enabling the operator to walk safely next to the truck with the tiller in his right hand, and with all controls for lifting and lowering close to hand in the tiller head. The low chassis allows the operator the best view of the forks at all times.
The SP is an extremely stable pedestrian pallet stacker with high load capacity. Small dimensions and high levels of manoeuvrability make it the ideal choice for operating in restricted spaces
Mast heights to 4190 mm, with choice of telescopic or duplex with free lift, plus standard fork lengths of 1000 mm or 1200 mm.
|MODEL||CAPACITY (KG)||TRUCK WIDTH (MM)||MAX LIFT HEIGHT (MM)|
