Description

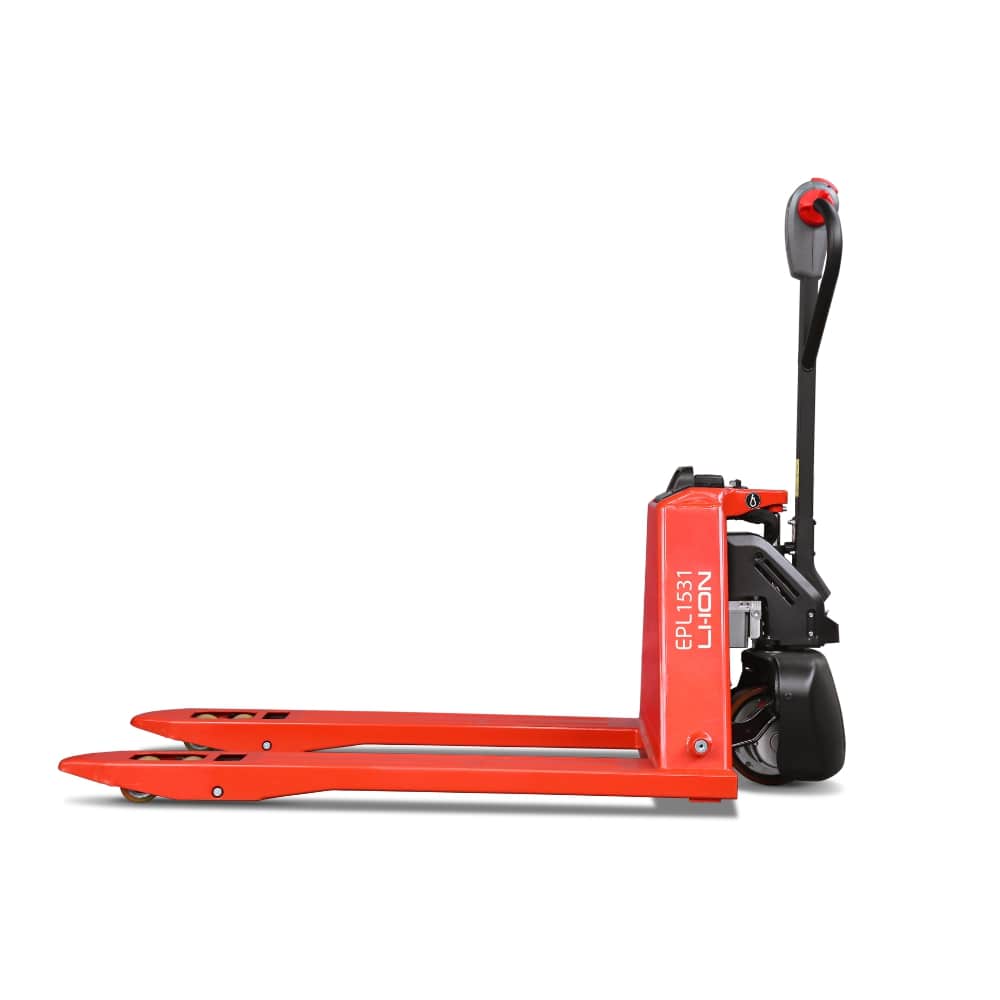

About The EPL1531
Improved new plug-in & out Li-lon battery
Improved new plug-in&out Li-lon battery to replace the old one.
Smart Lithium Battery
It is equipped with lithium batteries and an external charger as standard. It can also be charged by a truck-mounted charger. It saves worries about endurance and there is no need for a charging area.
Newly Designed Handle
It is lifted by electricity and lowered manually, there is no need to worry about damaging goods by uncontrollable lowering.
Pass Market Tests Of Safety And Reliability
It has 10-year market-tested components.
Standard Features
- Lithium Battery 24V 20Ahc
- Charger External – Three Pin Plug (Fitted)
- Drive Motor 0.75kw
- Lift Motor 0.70kw
- Removable Lithium Battery
- Based on Heavy Duty PPT Frame
- 120kg service weight including battery
- Polyurethane wheels
- 115mm lift height
- Turning radius 1330mm
- Ground clearance 30mm
- Travel speed laden/unladen: 4.5/5.0 km/h
- Steering type: Mechanical
- 12-month parts & labour warranty
| Model | Product SKU | Spec Sheet | Capacity | Fork Length | Overall Width Across Forks | Individual Fork Width | Fork Height Lowered |
|---|---|---|---|---|---|---|---|
| EPL1531 560 x 1150 - 1500KG | EPL1531 | Spec Sheet | 1500kg | 1150mm | 560mm | 150mm | 80mm |
| EPL1531 685 x 1000 - 1500KG | EPL1531 | Spec Sheet | 1500kg | 1000mm | 685mm | 150mm | 80mm |
